Safewaze SafeLink Form Link Anchor - FS-EX2502
Pre-Order By Phone 800-515-1002
Available in 3-5 Days
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

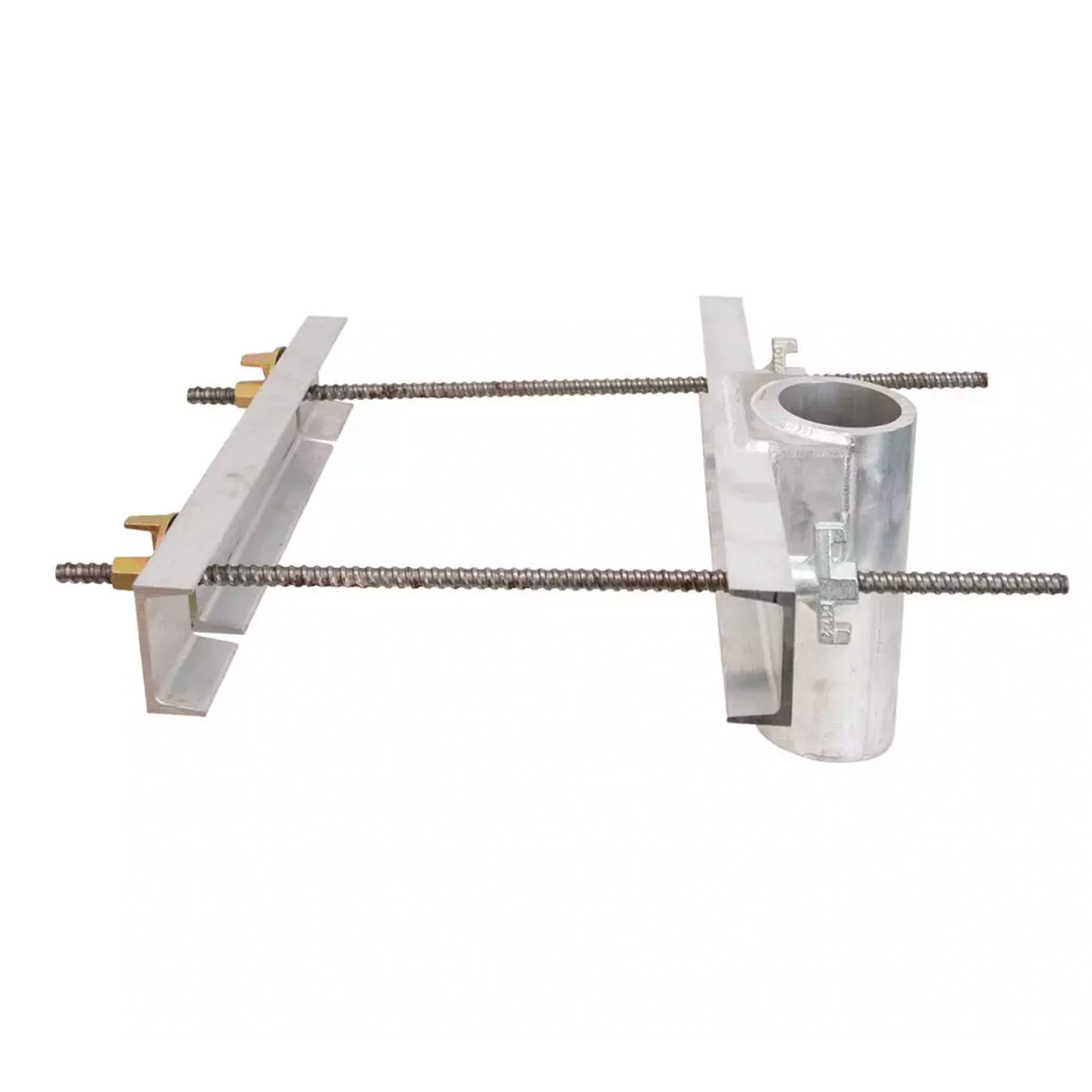

The SafeLink Form Link Anchor is a base designed for use with the the Safewaze SafeLink HLL System. Easily installed on various structures and used with our 7.5' aluminum post.
Features:

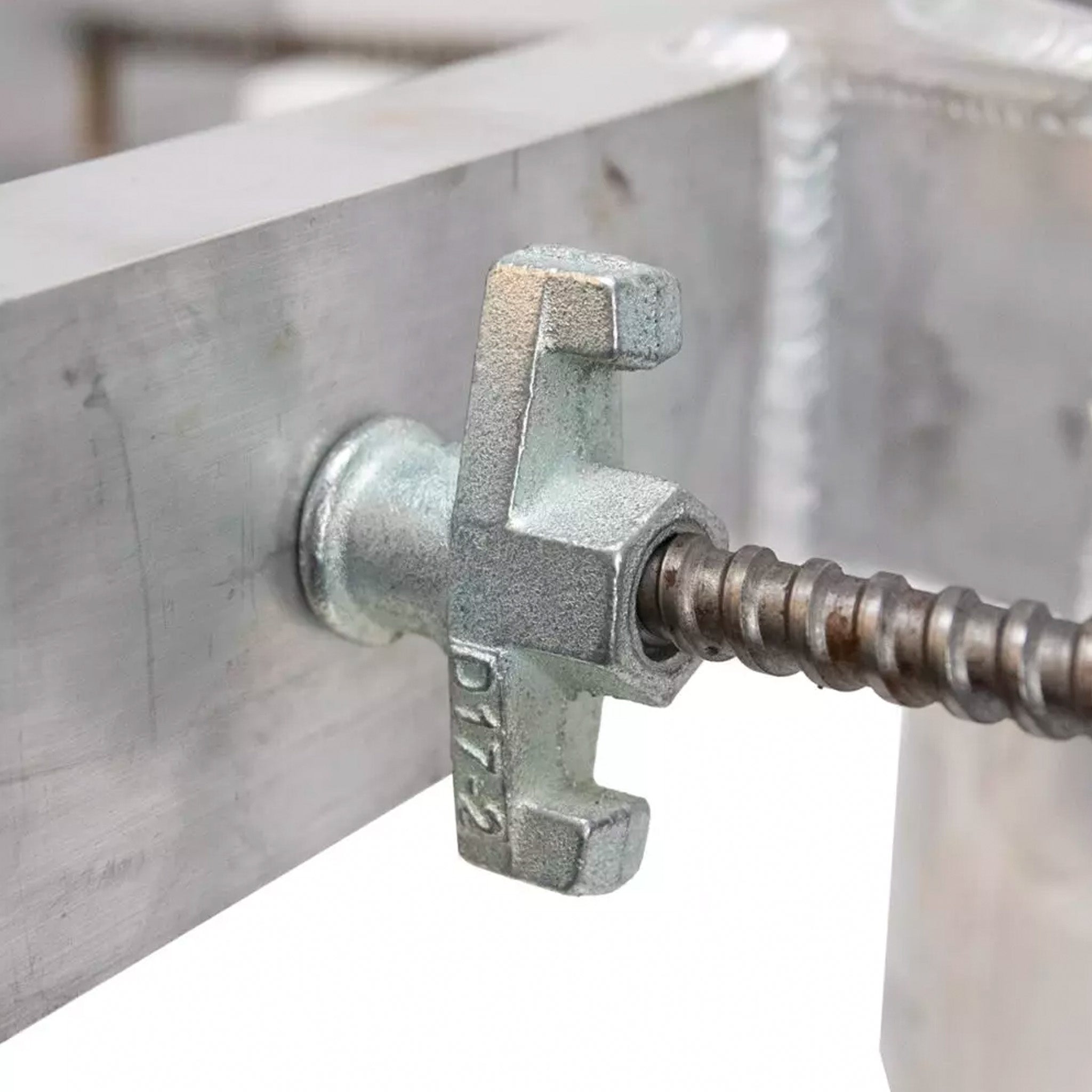

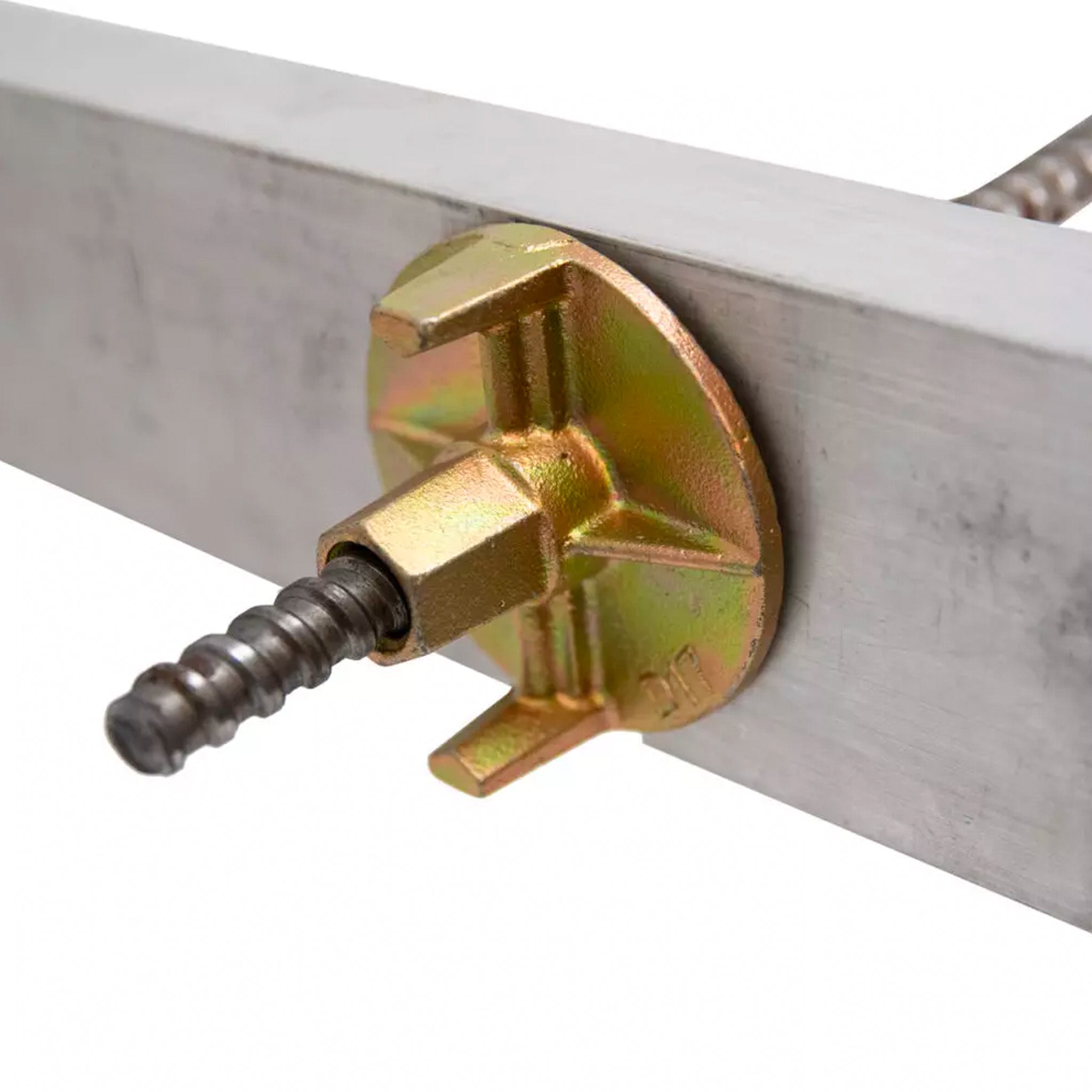

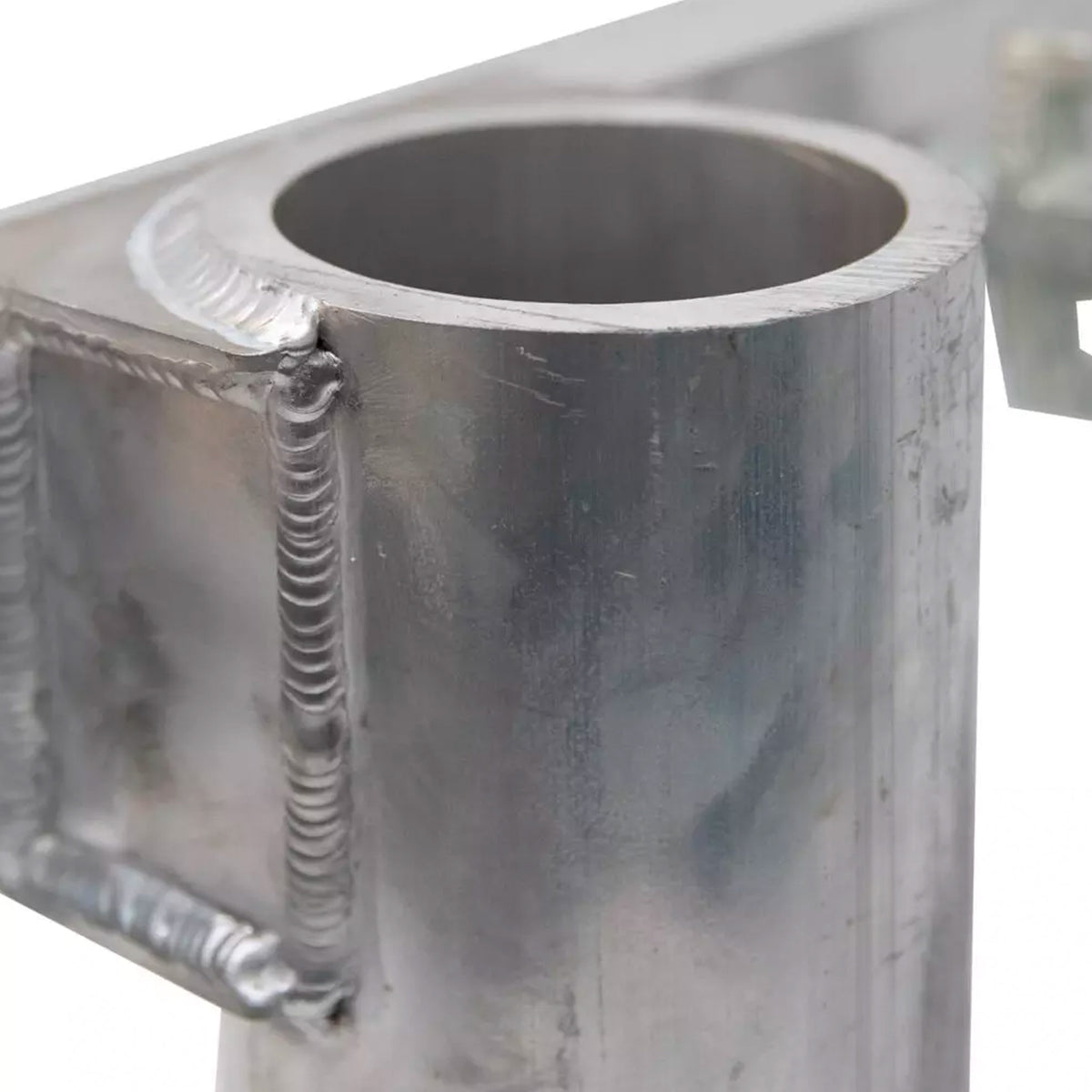

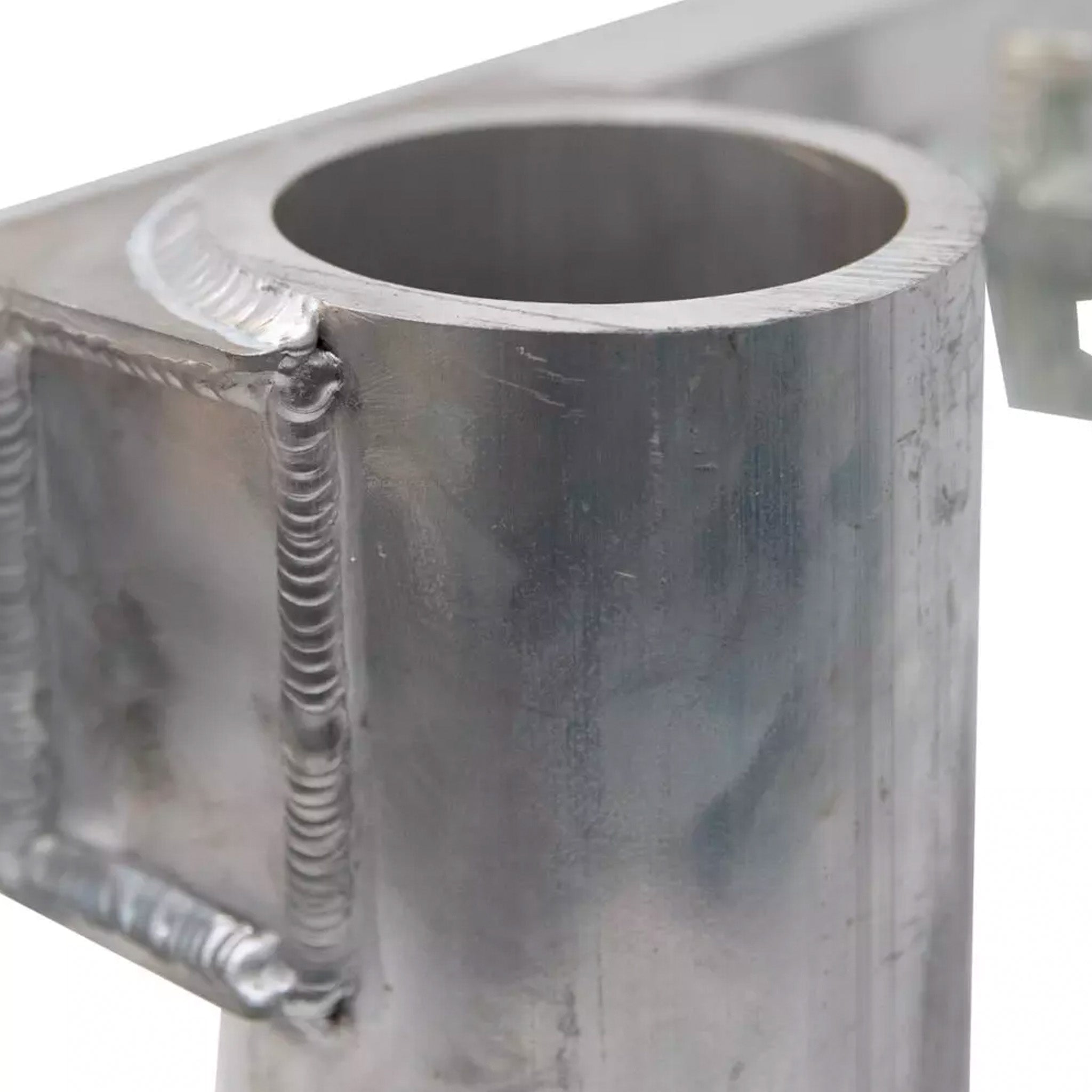

- Includes 2-piece aluminum bracket kit, 2 steel threaded rods and 2 wing nut brackets
- Versatile mounting:
- (6) #7 or larger stirruped rebar
- Finished wall (min. 8" thick)
- Clamped around a finished column
- Use with FS-EX5501-5 aluminum posts
-
Allowed working radius: +/- 15° perpendicular to the anchor point, do not side load
-
Not for 360° tie-off, not for use with FS-EX2514 SafeLink Whizzler Swivel Cap
-
Requires 1 1/2” supporting block for installation (not included)
| Materials: | 6061-T6511 aluminum bracket, zinc plated steel wingnuts and thread bar |
| Weight: | 26 lbs. (11.8 kg) |
| Length: | 28" (711.2 mm) |
| Weight Capacity: | 130-310 lbs. (59-141 kg) |
| Minimum Breaking Strength: | 3,600 lbs. (1633 kg) |
| OSHA Standards: | 1926.502 |
