Palmer Safety Girder Steel Anchor - A00006
Order By Phone 800-515-1002
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

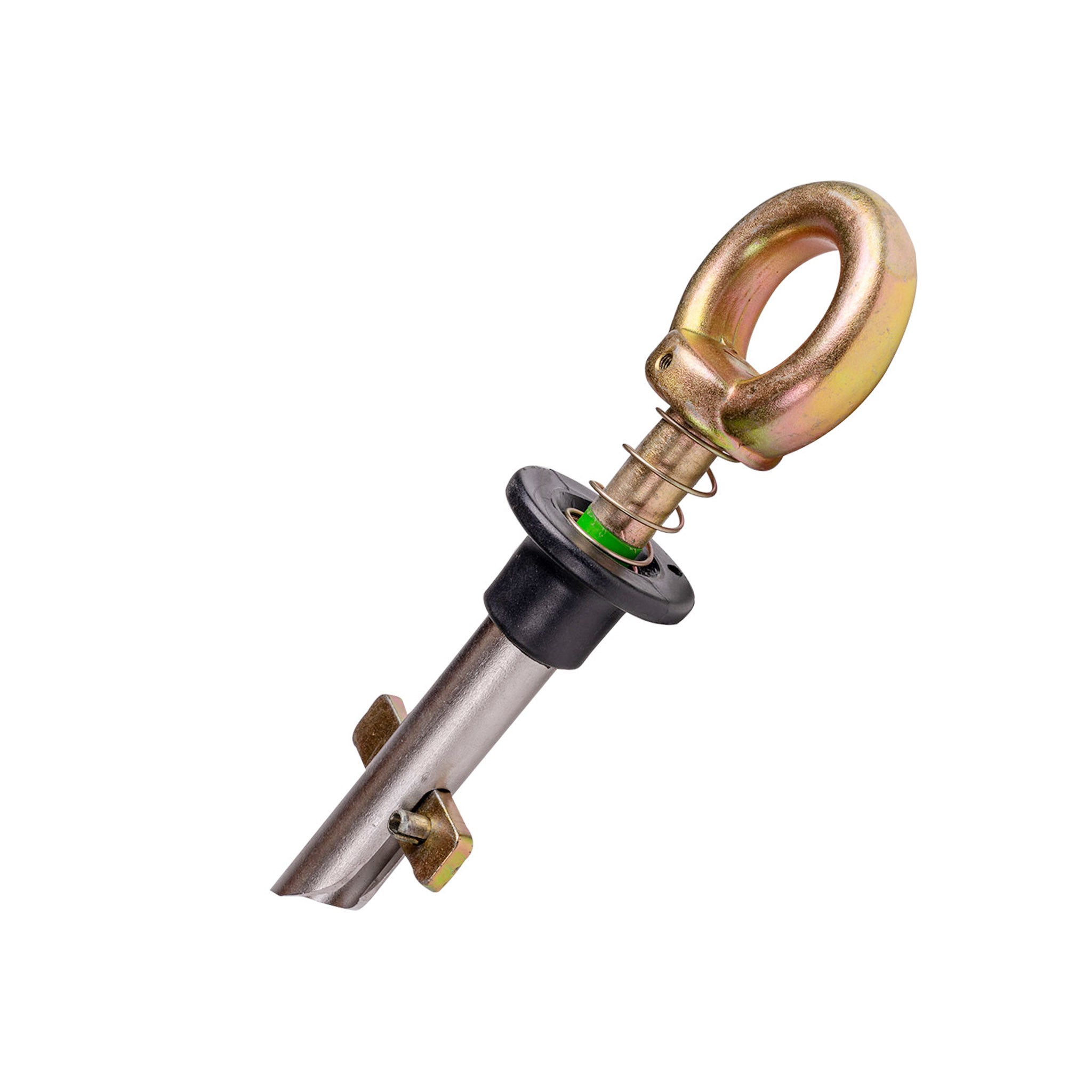

Girder Steel Anchor. Min breaking strength 5000 lbs. Meets or exceeds ANSI Z359.1-2007.
DESIGN:
- Girder steel anchor is a removable/reusable anchor that can be mounted on solid steel structures, Girders and steel I-Beams.
- Can be installed very easily with one hand only.
USAGE:
For use as an anchorage point for fall protection equipment
MATERIAL:
Eye nut and Main body: Alloy steel. Outer Body: Stainless steel moulded with polymer.
RECOMMENDED BOLT HOLE SIZE:
0.80” to 1.18”
STATIC STRENGTH:
Greater than 5000 lbs.

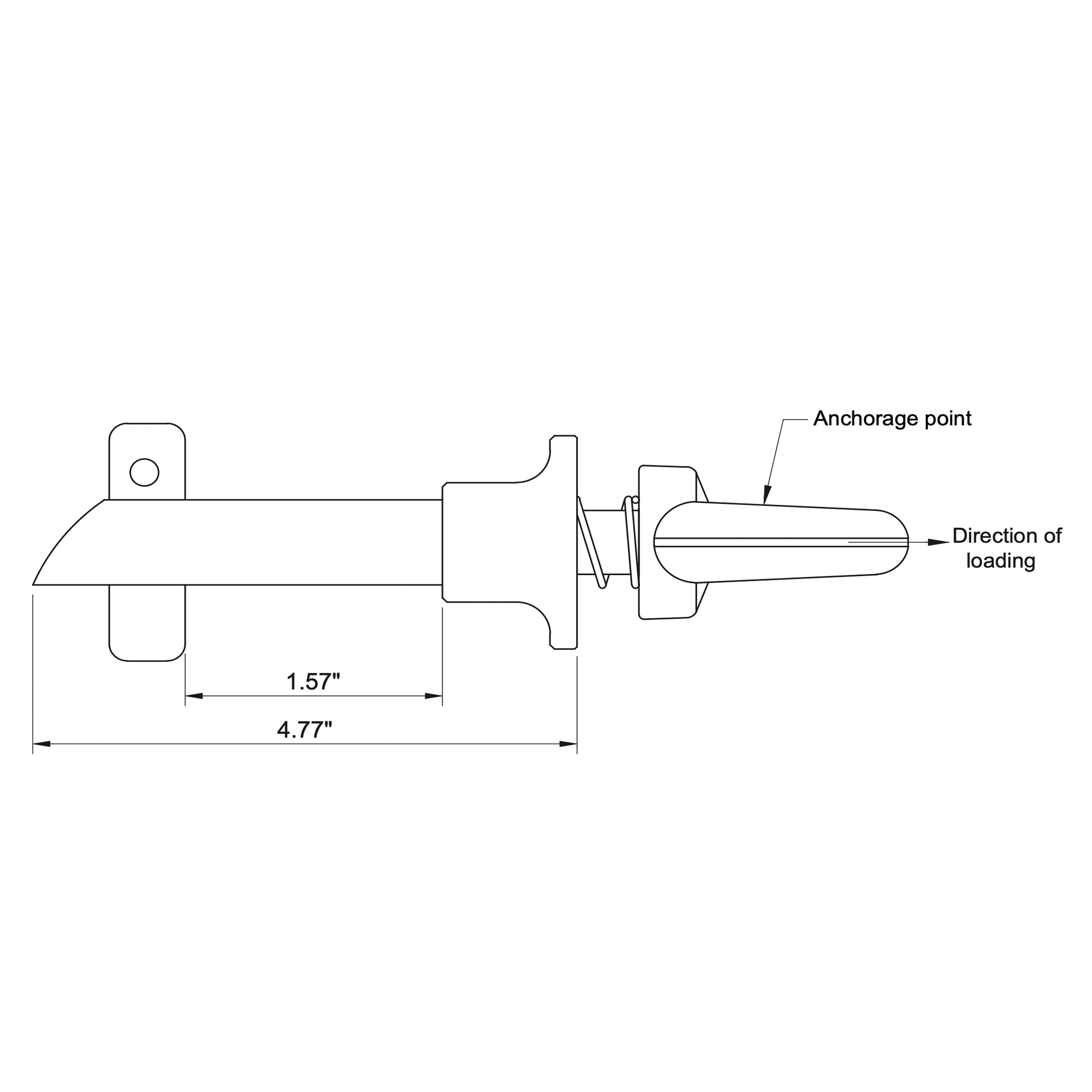

MAXIMUM THICKNESS OF THE STRUCTURE ON WHICH INSTALLATION POSSIBLE:
1.57”
WEIGHT:
1.21 lb. ± 0.02 lb.
MINIMUM BREAKING STRENGTH:
5000 lbs.
